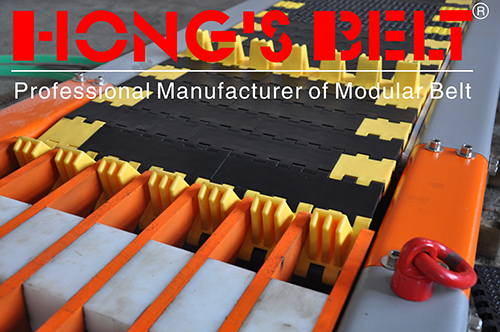

The HS-1800 Series 2.5inch pitch belt is HONGSBELT strongest modular plastic belt, widely used for heavy loading industrial application and automotive industry, 2 lane final assembly line conveyors, Skid and pallet handling conveyors, 2-lane water test conveyors and automotive parts handling. The belt has proven itself also in single lane car wash and single lane end-of-line inspection conveyors replacing conventional conveyance technology. It is moulded in high performance acetal and utilizing specialized PA6 rods as well as stainless steel pins. The belt is available to be equipped with F1 and F2 automotive pushers, which are designed to be driven over and ensure a controlled handling of any size vehicles on top of the belt. This heavy loading type belt is available from 4inch wide with increments of 2inch. Sprockets are available in solid or split execution and in several materials in robust design to handle increased loads.
FEATURES:
1) Ultra high load capacity of 110,000 N/m. No need for stainless steel rods to reach maximum working load, reducing overall belt weight and power consumption.
2) Equally divided hinges combination with 10mm rod diameter provide high belt stiffness.
3) Long life design due to large pin diameter, optimum hinge eye width and proven wear resistant design of the belt underside (large contact surface).
4) Easy installation and maintenance in combination with high-tech humanity lock design at both sides, which are easy to operate with just a screwdriver and prevent the loss of lock; self-closing under influence of belt weight.
5) Superior drive technology also under high load and heavy duty circumstances, due to specific belt pocket and sprocket design.
6) High strength pushers available intended for automotive and industrial usage.
7) Standard available in BSM and in BYSM with yellow sides for clear moving belt edge safety indication; upon request also available with other color sides.
8) High strength automotive F1 and F2 pushers and 40mm height Sideguards available intended for automotive and industrial application (sideguards are available exclusively through selected industry channels).
TYPES:
1) HS-1800A Solid Top Close Surface, suitable for any kind of industrial and automotive application
2) HS-1800B Flush Grid Flush grid surface, suitable for automotive clean application, or in water infiltration working environment
3) HS-1800D Non-skid Top Closed non-skid surface; prevents slipping in wet, greasy or humid environments.

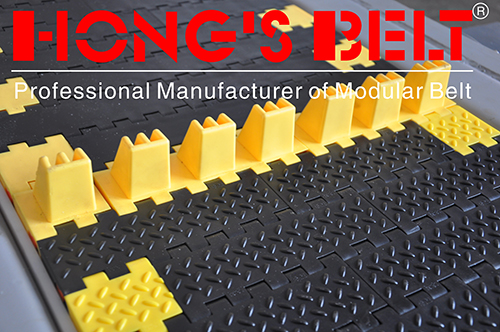

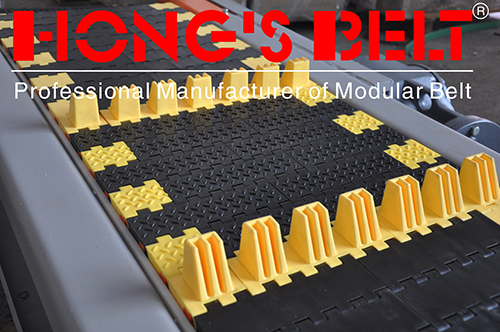

4) Belt accessories F1, F2 pushers available. Robust pushers designed to be driven over by vehicles
