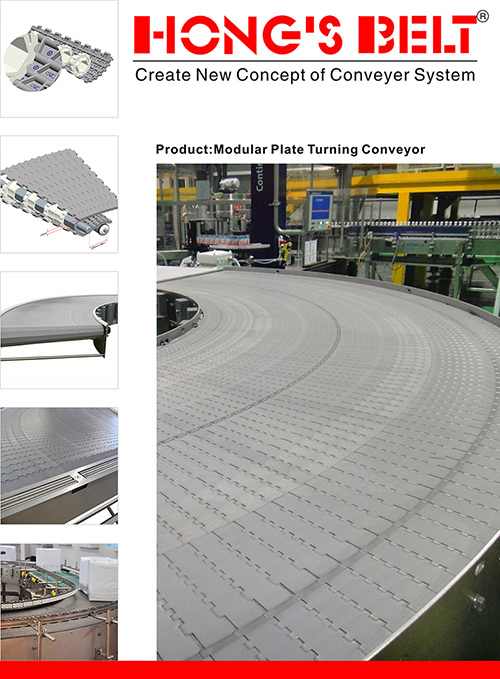

New Product:Plate Top Curved Conveyor

The new generation of plate top curved conveyor has been launched out.

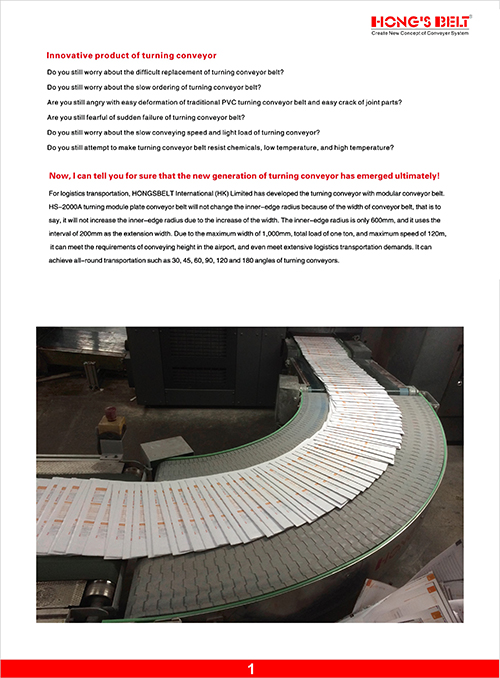

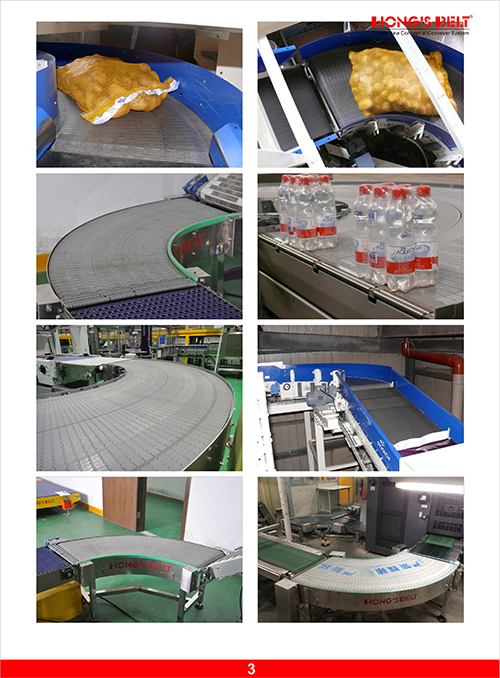

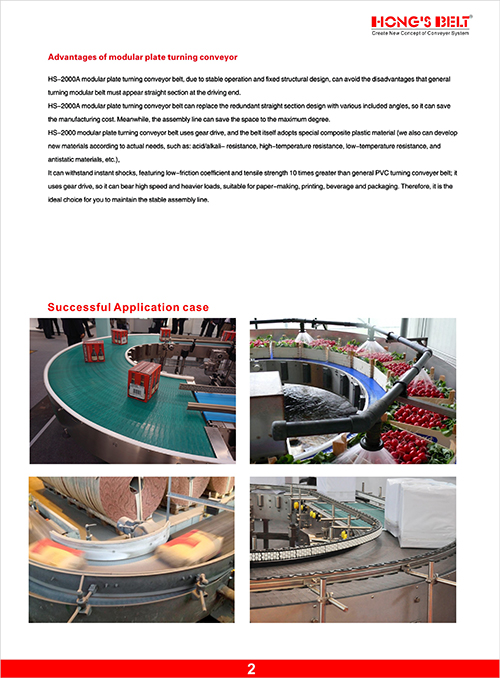

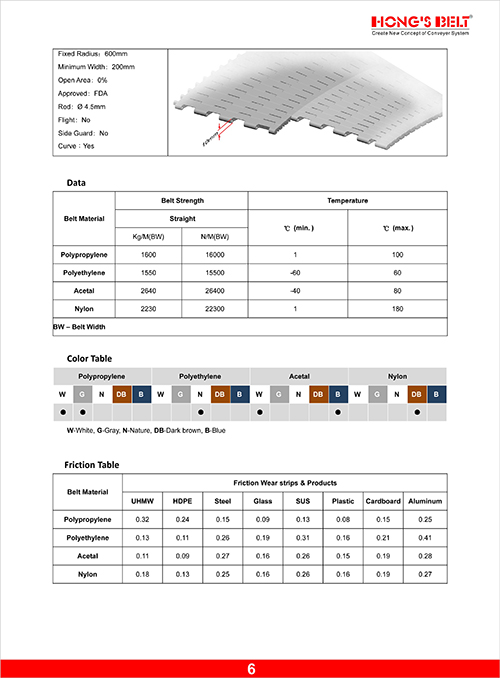

For logistics transportation, HONGSBELT has developed the plate top curved conveyors. Which are installed with HS-2000A plate top modular conveyor belt, turning radius of it is fixed---600mm, and will not change because of the belt width, in another words, the turning radius will not increase due to the increase of the belt width. The inner radius of the conveyor is only 600mm; the width of conveyor increases with 200mm as unit, Max width is 1000mm, Max. Load capacity is up to 1 Ton, and maximum speed can up to 120m, which can meet the requirements of high-speed conveying in airport, and also meet a variety of demands in logistics.

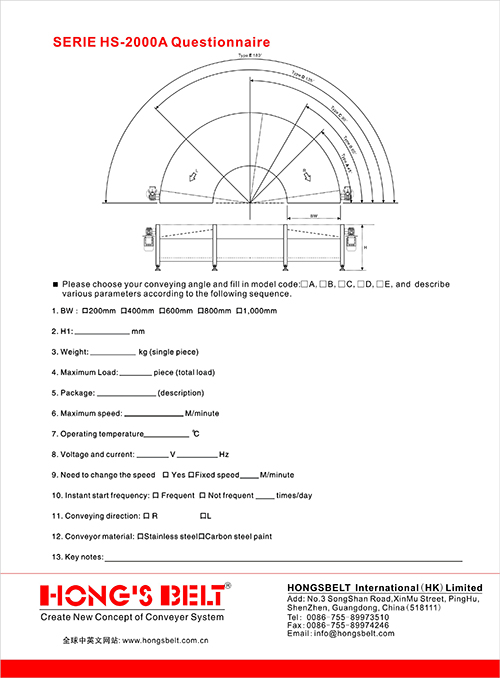

HONGSBELT plate top curved conveyors can achieve multi-angle transportation, including 30, 45, 60, 90, 120 and 180 angles.
